Portable Plastic 40 x 40 x 15mm DC 24V Computer Case Cooling Fans

Product Categories

Shenzhen Topfan Technology Development Co., Ltd.

Contact Now

Portable Plastic 40 x 40 x 15mm DC 24V Computer Case Cooling Fans

Brand Name : MX

Model Number : MX4015AB ( S ) L2

Certification : CE / ROHS

Place of Origin : ShenZhen / GuangDong / China

MOQ : 500 Pieces

Price : USD + 1 to 5 + Piece

Payment Terms : T/T, Western Union

Supply Ability : 70000 + Pieces + A Week

Delivery Time : 5 - 8 Working Days

Packaging Details : Carton Box

Color : Black

Rated Voltage : 24V

Bearing Type : Sleeve Bearing & Ball Bearing

START - UP VOLTAGE : DC 11 . 0V ( ON / OFF )

RATED CURRENT : 0.05A

RATED SPEED : 5500RPM

AIR FLOW : 6 . 5CFM

NOISE LEVEL : 25 . 12dBA

Contact Now

Portable Plastic 40 x 40 x 15mm DC 24V Computer Case Cooling Fans

Rotation Direction :

The blade is count Clockwise viewing from the blade. The same direction also indicated by an arrow mark on one side of the housing

Life Expectancy :

The continuous duty life at given temperature after which 90% of testing units shall still be running

Bearing System	Test Temperature	Test time
Ball Bearing	25℃	50000
Ball Bearing	40℃	45000
Ball Bearing	60℃	38000

Specifications)

***********************************************************************

ITEM SPECIFICATION / CONDITION

BEARING TYPE :Ball Bearing

RATING VOLTAGE : DC 24V

RATED VOLTAGE :DC 15V - 25 . 8V

START-UP VOLTAGE :DC 11.0V ( ON / OFF )

RATED CURRENT :0 . 05A ± 10﹪　

RATED SPEED :5500RPM ± 10%

AIR FLOW :6 . 50CFM

AIR PRESUURE :3 . 18mmH₂O

NOISE LEVEL :25 . 12dB ( A )

PROFECFION TRPE

RESISTANCE PROFECTED : YES

AUTO START : NO

TACHOMETER OUTPUT : NO

LOCK ROTOR ALARM OUTPUT : NO

PULSE WIDTH MODULATION : NO

THERMAL SPEED CONTROLLED : NO

CONNECTION LEAD TYPE :UL1007 24 # AWG =250mm RED … POSITIVE , BLACK … NEGATIVE

HOUSING : NO

LABEL :24V - 0 . 05A

Voltage:12V , 24V, 48V
Insulation Resistance:10M AT 500VDC
Dielectric Withstand:Between lead or terminal and housing 700VAC for 3 secretary or 500 VDC for 1Min
Opetation Temperature:-10℃～70℃(Ordinary humidity)
Storage Temperature:-40℃～70℃(Ordinary humidity)
Life Expectancy:Ambient temperature 25℃ and humidity 65%

Ball bearing:50, 000Hours

Sleeve bearing:30, 000Hours

Competitive Advantage:

*Qualified, cost effective and easily operated

*Small in shape, have compact structure

*UL, CE, Rohs, CUL, CCC

* Competitive Pricing

* Keep Investing and Developing In New Products

* The Most Advanced Testing and Measuring Equipment

* On-Time Delivery

Portable Plastic 40 x 40 x 15mm DC 24V Computer Case Cooling Fans

Product Tags:

waterproof cooling fan

dc centrifugal fan

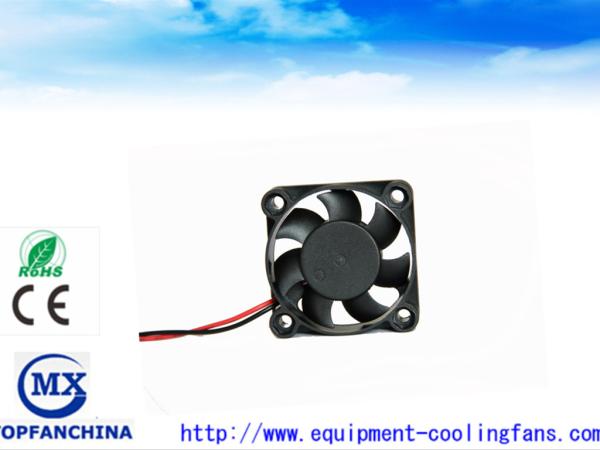

Portable Plastic 40 x 40 x 15mm DC 24V Computer Case Cooling Fans Images
