Plastic Small DC Brushless Fan , 12V Low Noise Cooling Fan 6000 - 12000RMP

Product Categories
Shenzhen Topfan Technology Development Co., Ltd.
Contact Now

Plastic Small DC Brushless Fan , 12V Low Noise Cooling Fan 6000 - 12000RMP

Brand Name : MX / OEM / ODM

Model Number : MX2510AB(S)U1

Certification : CE, ROHS

Place of Origin : China

MOQ : 200pcs

Price : us$1/pcs to us$3.00/pcs, and negotiation

Payment Terms : T/T, Western Union, paypal

Supply Ability : 600,000pcs per month

Delivery Time : 5 -12 working days after received your payment

Packaging Details : carton, other can be customized

Product name : Brushless DC Fan, dc fan 5V 12V, dc motor fan, dc axial fan, dc brushless fan, fan 25mm x 25mm x 10mm, mini fan, high speed fan, DC Motor Fan, Cheap Fan, Portable Fan, CPU Fan, Computer case fan, laptop fan, air cooler fan ,PWM Fan, FG cooling fan, LED Dig

Rate Voltage : 5V 12V

Current : 0.04 - 0.2A

Speed : 6000 - 12000RMP

Bearing type : sleeve / ball bearing

Motor : Impedance Protected And Reverse Polarity Protected

Max air flow : 2.24CFM

Weight : 6g

Housing and blade material : Plastic ( 94V-0 ) ,PBT

Contact Now

Small Cooling Fan CE ROHS, Shenzhen DC 12V Motor Fan 25mm micro fan


Basic description:

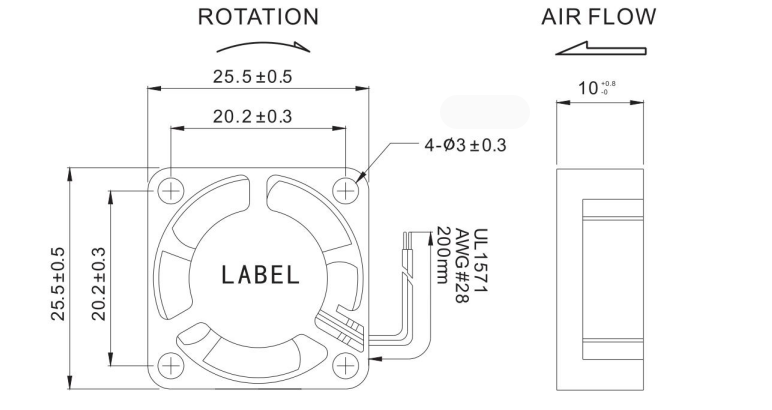

● Size : 25 x 25 x 10mm

● Material : Plastic Frame and Plastic blade

● Voltage : 5V DC , 12V DC


● Port settings : Terminal or length 300mm in Lead wire


● Function : damproof ip44 can be satified

● Signal wire : PWM, FG, RD


● Bearing type : Ball bearing or Sleeve bearing or Hydraulic bearing


● Expected life : Ball bearing 50000hours ( 40C ) , Sleeve bearing 30000hours ( 40C )


Product detial:

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX2510AB(S/Y)U5 B.S.Y 5 3.0-6.5 0.20 1.00 12000 2.24 0.06 0.21 51.39 25.00 6.00
MX2510AB(S/Y)H5 B.S.Y 5 3.0-6.5 0.18 0.90 10000 1.91 0.05 0.16 39.42 24.00 6.00
MX2510AB(S/Y)M5 B.S.Y 5 3.0-6.5 0.14 0.70 8000 1.46 0.04 0.09 22.65 22.00 6.00
MX2510AB(S/Y)L5 B.S.Y 5 3.0-6.5 0.10 0.50 6000 1.00 0.03 0.05 13.44 18.00 6.00
MX2510AB(S/Y)U1 B.S.Y 12 7.0-13.8 0.10 1.20 12000 2.24 0.06 0.21 51.39 25.00 6.00
MX2510AB(S/Y)H1 B.S.Y 12 7.0-13.8 0.08 0.96 10000 1.91 0.05 0.16 39.42 24.00 6.00
MX2510AB(S/Y)M1 B.S.Y 12 7.0-13.8 0.06 0.72 8000 1.46 0.04 0.09 22.65 22.00 6.00
MX2510AB(S/Y)L1 B.S.Y 12 7.0-13.8 0.04 0.48 6000 1.00 0.03 0.05 13.44 18.00 6.00

Plastic Small DC Brushless Fan , 12V Low Noise Cooling Fan 6000 - 12000RMPPlastic Small DC Brushless Fan , 12V Low Noise Cooling Fan 6000 - 12000RMP

More axial fan with different size:

DC aixal fan with sqare shape ( L/W *T )
AC axial fan with square shape (L/W * T )
2010
2507
2510
6030
8025
8038
3007
3010
3015
9225
9238
12025
3510

4010
4020
12038
12738
13538
5010
5015
5020
14045
15051
16062
6010
6015
6020
17055
17238
17251
6025
6038
7015
20060
22060
22580
7025
8015
8020
25489
28080
8025
8032
9225
9232
9238
12025
12032
12038
17040
17051
20060
25489
voltage optional, air volume optional, wind pressure optional,
material optional ( plastic, metal ),
function optional (waterproof, moisture-proof, dustproof, high temperature-proof, corrosion-proof)
function line optional (PWM speed control, FG feedback, the RD alarm, temperature control)
