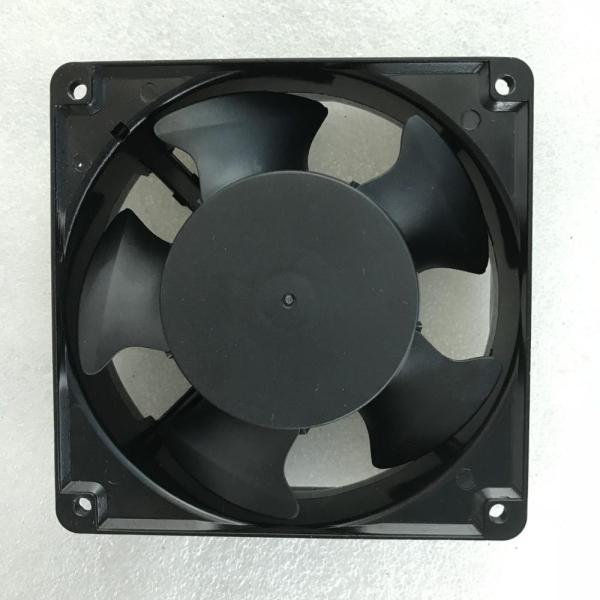

Ball Bearing 110V AC Computer Fan 120MM High Temperature Heater Type CE ROHS
| Basic specification | Beaing type | Ball bearing / sleeve bearing |
| Rated voltage | 110v 115v 120v 220v 240v AC |
| Input power | 15W-26W |
| Speed | 2500RPM |
| Max air flow | 87 - 160CFM |
| Function | Waterproof : IP58 IP68 |
| Meteial and structure | Frame | Metal |
| Impeller | PBT |
| Motor | Reverse Polarity Protected |
| Leadwire | 2 wires(red wire "+", balck wire "-") |
| Connector | with / without as your request |
| Performance | Expected life | Ball bearing 50000 hours(40℃) |
| Sleeve bearing 30000 hours(40℃) |
| Allowwable temperature range | operating –20℃ to +80℃ |
| storage–40℃ to +70℃ |
Fan usage:
air cooler , air purifier, refrigerator, industry equipment, electric cabinet ventilation ,
ventilation equipment & System, air conditioner, refrigeration equipment, telecom power supply station.
Industry cabinet, industry machine equipment, backup chassis, keezer, refrigerators, freezers, electric equipment, smart device,medical equipment, home appliance,and so on
Specification and Dimention of 12038 ac axial fan with 5 blade:
| Model | Bearing Type | Rated Voltage | Freq. | Current Amp | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise Level | Weight |
| Part No. | S B Y | VDC | Hz | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | dB-A | g |
| MX12038ABH11 | B.S | 110/ 120 | 50/ 60 | 0.3/ 0.27 | 24/ 20 | 2400/ 3000 | 95/ 180 | 2.5/ 2.8 | 0.2/ 0.24 | 35/ 41 | 520 |
| MX12038ABH22 | B.S | 220/ 240 | 50/ 60 | 0.13/ 0.12 | 20/ 17 | 2400/ 3000 | 95/ 180 | 2.5/ 2.8 | 0.2/ 0.24 | 35/ 41 | 520 |
| MX12038ABH38 | B.S | 380/ 400 | 50/ 60 | 0.07/ 0.05 | 18/ 14 | 2400/ 3000 | 95/ 180 | 2.5/ 2.8 | 0.2/ 0.24 | 35/ 41 | 520 |
